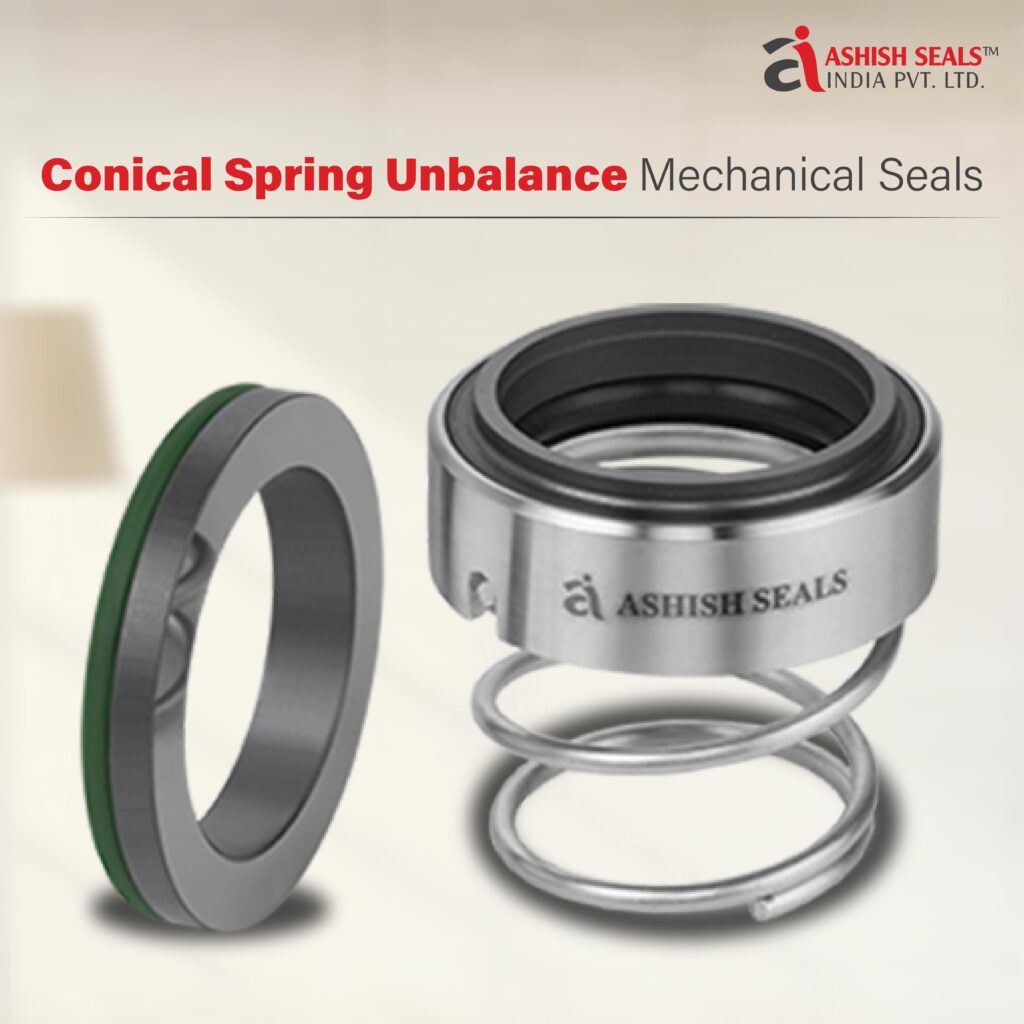

Conical Spring Unbalanced Mechanical Seal
Ashish Seals manufacturing and exporting high quality Conical Spring Unbalanced Mechanical Seal worldwide.
Ashish Seals – one of the leading manufacturers and suppliers of Mechanical Seals in Mumbai, India. Ashish Seals is India’s renowned Industrial Conical Spring Unbalanced Mechanical Seal exporter.
Characteristics :
Standard design, Single mechanical seal, Reverse balanced, Outside mounted, Independent of direction of rotation, Available With/without bearing, Top/Side entry agitators.
Standard design, Single mechanical seal, Reverse balanced, Outside mounted, Independent of direction of rotation, Available With/without bearing, Top/Side entry agitators.
Operating :
| Product Code | : | PS31 |
| Shaft Diameter | : | 20mm to 100mm |
| Pressure | : | Vacuum to 10 bar (max.) |
| Temperature | : | 10 bar (max.) |
| Speed | : | -20°C to 120°C |
Table of Contents
Conical Spring Unbalanced Mechanical Seal Supplier
Conical Spring Unbalanced Seal is rugged in design and finds its wide application for different purposes. It is used to handle corrosive chemicals, chemical process pumps, water, sewage & submersible pumps as well as light and general chemicals.
Working Principle
Conical Spring Unbalanced Seal is a compact design seal that removes the need of extra axial and radial space for its installation. It is developed to resist extreme corrosive chemicals such as salts, concentrated acids, strong reducing and oxidizing agents.
The seal is a single conical spring, unbalanced seal that has an O-ring that is provided for secondary sealing purposes. As the torque transmission is done by the single coil springs, these seals depend on the rotation’s directions. This is seen from the drive end of the shaft. Due to the presence of taper spring having different dimensions, it suits many media.
Left handed & right handed springs are providers for anticlockwise and clockwise rotating shafts respectively. It can easily be dismantled and assembled as it has fewer parts. The seals are known to handle contaminated liquid and thus, spring clogging does not take place.
Advantages of Conical Spring Unbalanced Seal:
- Large choice of materials.
- No damage to the shaft by set screws.
- Insensitive to low solids content.
- Short installation lengths possible.
- Variants with shrink-fitted seal faces available.
- Universal application opportunities.
Applications of Conical Spring Unbalanced Mechanical Seal
Conical Spring Unbalanced Mechanical Seal is used to handle corrosive chemicals, chemical process pumps, water, sewage & submersible pumps as well as light and general chemicals.
Search for Tags :types of mechanical seals, mechanical seal
Specifications of Conical Spring Unbalanced Mechanical Seal
For Technical Parameters / Specifications, please download
